Посадочное кольцо Тип 2 (3 компонента)
20/1.0, 20/1.7, 20/2.0, 24/1.7, 24/1.7, 24/1.7, 24/2.0, 25/1.5, 25/1.7, 25/1.7, 25/2.0, 25/2.5, 25/2.5, 25/2.5, 25/3.0, 25/3.0, 25/3.0, 25/3.5, 26/1.1, 29/2.5, 29/2.5
Характеристики
| ДИАМЕТР ОБОДА / ВЫСОТА ФЛАНЦА | Размеры, мм | ||||||
|---|---|---|---|---|---|---|---|

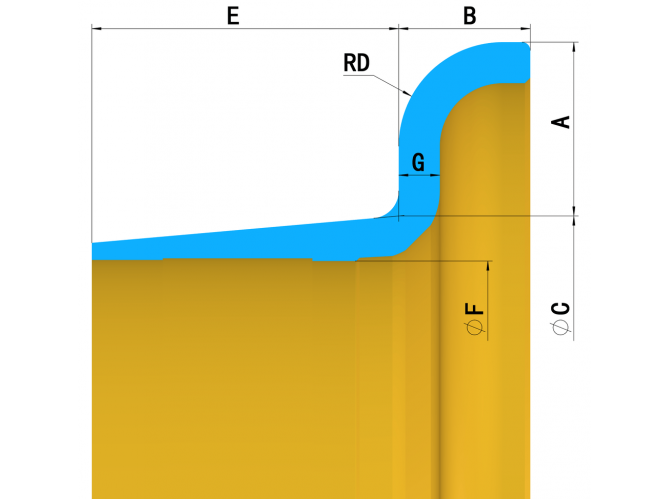

| A | B | Ø C | D | E | Ø F | G | |
| 20/1.0 | 25.5 | 25 | 512.8 | 16.0 | 55 | 491.2 | 12.0 |
| 20/1.7 | 43.0 | 32 | 514.4 | 23.0 | 60 | 492.0 | 11.5 |
| 20/2.0 | 51.0 | 34 | 514.4 | 25.5 | 60 | 491.2 | 12.0 |
| 24/1.7 | 43.0 | 36 | 614.4 | 25.5 | 60 | 590.2 | 12.0 |
| 24/1.7 | 43.0 | 32 | 614.4 | 25.5 | 60 | 590.2 | 13.5 |
| 24/1.7 | 43.0 | 32 | 616.0 | 25.5 | 50 | 590.2 | 13.5 |
| 24/2.0 | 51.0 | 36 | 614.4 | 25.5 | 60 | 590.2 | 13.5 |
| 25/1.5 | 38.0 | 32 | 635.0 | 25.5 | 65 | 611.0 | 11.5 |
| 25/1.7 | 43.0 | 32 | 635.0 | 23.0 | 70 | 611.0 | 9.5 |
| 25/1.7 | 43.0 | 32 | 635.0 | 23.0 | 70 | 611.0 | 11.5 |
| 25/2.0 | 51.0 | 36 | 635.0 | 32.0 | 70 | 611.0 | 11.5 |
| 25/2.5 | 63.5 | 45 | 635.0 | 38.0 | 106 | 602.0 | 15.0 |
| 25/2.5 | 63.5 | 48 | 635.0 | 38.0 | 112 | 602.0 | 15.0 |
| 25/2.5 | 63.5 | 48 | 635.0 | 38.0 | 106 | 602.0 | 16.0 |
| 25/3.0 | 76.0 | 58 | 635.0 | 44.5 | 123 | 602.0 | 15.0 |
| 25/3.0 | 76.0 | 58 | 635.0 | 44.5 | 123 | 602.0 | 17.0 |
| 25/3.0 | 76.0 | 58 | 635.0 | 44.5 | 123 | 602.0 | 17.0 |
| 25/3.5 | 89.0 | 60 | 635.0 | 51.0 | 123 | 602.0 | 16.0 |
| 26/1.1 | 28.0 | 27 | 665.2 | 22.0 | 70 | 642.5 | 12.0 |
| 29/2.5 | 63.5 | 55 | 736.6 | 38.0 | 80 | 708.0 | 16.0 |
| 29/2.5 | 63.5 | 55 | 736.6 | 38.0 | 80 | 708.0 | 18.0 |
