Бортовое кольцо Тип 4
12/1.1, 20/1.7, 20/2.0, 24/2.0, 24/2.0, 24/1.7, 24/1.7, 24/1.7, 24/2.0, 24/2.0, 25/1.5, 25/1.84, 25/2.0, 25/2.0, 25/2.0, 25/2.5, 25/2.5, 25/2.5, 25/2.5, 25/3.0, 25/3.0, 25/3.0, 25/3.5, 27/2.4, 29/3.5, 29/3.5, 33/2.5, 33/2.5
Характеристики
| ДИАМЕТР ОБОДА / ВЫСОТА ФЛАНЦА |

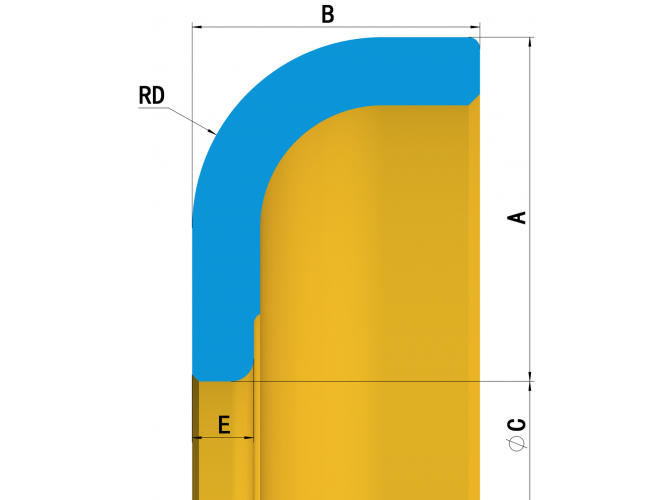

РАЗМЕРЫ, мм | РАЗМЕРЫ, мм | ДИАМЕТР ОБОДА / ВЫСОТА ФЛАНЦА |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | A | B | C | D | E | ||
| 12/1.1 | 27.7 | 16.0 | 304.6 | 14.0 | 7.5 | 62.5 | 48 | 840.0 | 38.0 | 16.0 | 33/2.5 |
| 20/1.7 | 38.0 | 32.0 | 524.0 | 23.0 | 12.0 | 62.5 | 55 | 840.0 | 38.0 | 15.0 | 33/2.5 |
| 20/2.0 | 43.0 | 32.0 | 524.0 | 25.5 | 12.0 | 62.5 | 55 | 840.0 | 38.0 | 16.0 | 33/2.5 |
| 24/2.0 | 43.0 | 32.0 | 625.0 | 25.2 | 12.0 | 75.0 | 70 | 840.0 | 44.5 | 16.0 | 33/3.0 |
| 24/2.0 | 47.5 | 33.5 | 616.0 | 25.5 | 12.0 | 88.0 | 60 | 840.0 | 51.0 | 15.0 | 33/3.5 |
| 24/1.7 | 38.5 | 36.0 | 625.0 | 25.5 | 12.0 | 88.0 | 64 | 840.0 | 51.0 | 15.0 | 33/3.5 |
| 24/1.7 | 38.5 | 36.0 | 625.0 | 25.5 | 14.0 | 88.0 | 77 | 840.0 | 51.0 | 15.0 | 33/3.5 |
| 24/2.0 | 40.5 | 32.0 | 630.0 | 26.0 | 14.0 | 75.0 | 55 | 891.0 | 44.5 | 18.0 | 35/3.0 |
| 24/2.0 | 49.8 | 36.0 | 612.0 | 25.5 | 12.0 | 75.0 | 55 | 891.0 | 44.5 | 18.0 | 35/3.0 |
| 25/1.5 | 37.0 | 34.0 | 637.0 | 25.5 | 12.0 | 75.0 | 58 | 891.0 | 44.5 | 20.0 | 35/3.0 |
| 25/1.84 | 46.0 | 32.0 | 637.0 | 25.5 | 12.0 | 75.0 | 68 | 891.0 | 44.5 | 18.0 | 35/3.0 |
| 25/2.0 | 50.0 | 36.0 | 637.0 | 32.0 | 14.0 | 75.0 | 64 | 891.0 | 51.0 | 16.0 | 35/3.5 |
| 25/2.0 | 50.0 | 40.0 | 637.0 | 32.0 | 14.0 | 75.0 | 71 | 891.0 | 51.0 | 16.0 | 35/3.5 |
| 25/2.0 | 50.0 | 47.0 | 637.0 | 32.0 | 14.0 | 113.3 | 85 | 1145.0 | 63.5 | 18.5 | 45/4.5 |
| 25/2.5 | 62.5 | 47.5 | 637.0 | 38.0 | 14.0 | 100.6 | 75 | 1246.6 | 57.0 | 19.0 | 49/4.0 |
| 25/2.5 | 62.5 | 45.0 | 637.0 | 38.0 | 14.0 | 100.6 | 75 | 1246.6 | 57.0 | 21.0 | 49/4.0 |
| 25/2.5 | 62.5 | 48.0 | 637.0 | 38.0 | 19.0 | 100.6 | 90 | 1246.6 | 57.0 | 21.0 | 49/4.0 |
| 25/3.0 | 75.0 | 58.0 | 637.0 | 44.5 | 16.0 | 113.3 | 83 | 1297.4 | 63.5 | 22.5 | 51/4.5 |
| 25/3.0 | 75.0 | 60.0 | 637.0 | 44.5 | 16.0 | 113.3 | 92 | 1297.4 | 63.5 | 22.5 | 51/4.5 |
| 25/3.0 | 75.0 | 58.0 | 637.0 | 44.5 | 15.0 | 126.0 | 105 | 1297.4 | 70.0 | 25.0 | 51/5.0 |
| 25/3.0 | 75.0 | 58.0 | 637.0 | 44.5 | 18.0 | 126.0 | 115 | 1297.4 | 70.0 | 24.0 | 51/5.0 |
| 25/3.5 | 88.0 | 64.0 | 637.0 | 51.0 | 16.0 | 126.0 | 127 | 1449.8 | 70.0 | 27.0 | 57/5.6 |
| 27/2.4 | 59.5 | 48.0 | 694.0 | 38.0 | 16.0 | 126.0 | 145 | 1449.8 | 84.0 | 27.0 | 57/5.6 |
| 29/3.5 | 88.0 | 64.0 | 739.0 | 51.0 | 15.0 | 151.4 | 127 | 1449.8 | 84.0 | 25.0 | 57/6.0 |
| 29/3.5 | 88.0 | 64.0 | 739.0 | 51.0 | 15.0 | 151.4 | 127 | 1449.8 | 84.0 | 25.0 | 57/6.0 |
| 33/2.5 | 62.5 | 46.0 | 840.0 | 38.0 | 16.0 | 151.4 | 127 | 1449.8 | 84.0 | 27.0 | 57/6.0 |
| 33/2.5 | 62.5 | 46.0 | 840.0 | 38.0 | 16.0 | 151.4 | 127 | 1449.8 | 84.0 | 30.0 | 57/6.0 |
