Вилочные погрузчики повышенной грузоподъёмности
Портовая и складская техника
20–7.0, 20–7.0, 20–7.5, 20–7.5, 20–7.5, 20–8.0, 20–8.0, 20–8.0, 20–8.5, 20–8.5, 20–9.0, 20–10.0/1.7, 20–10.0/2.0, 15.00T–20, 24–10.00W/2.0, 24–8.5, 24–10.00WA/2.0, 24–10.00WA/2.0, 24–8.5/1.7, 24–10.0/1.7, 24–10.0, 24–10.0, 25–11.25/2.0
Портовая и складская техника
Характеристики
| Размер обода | Рекомендуемый размер шин |

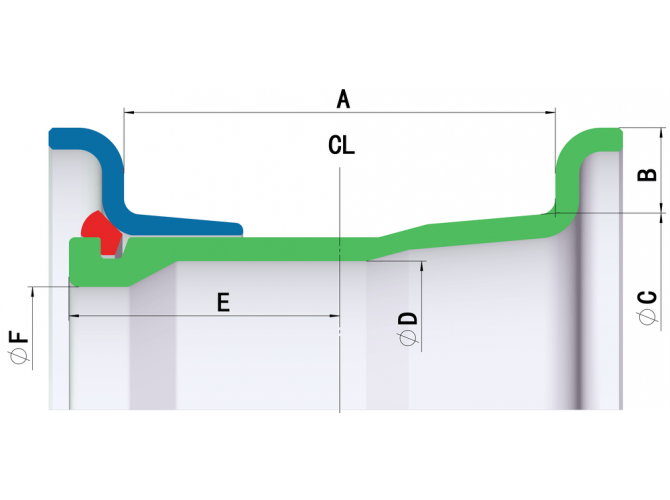

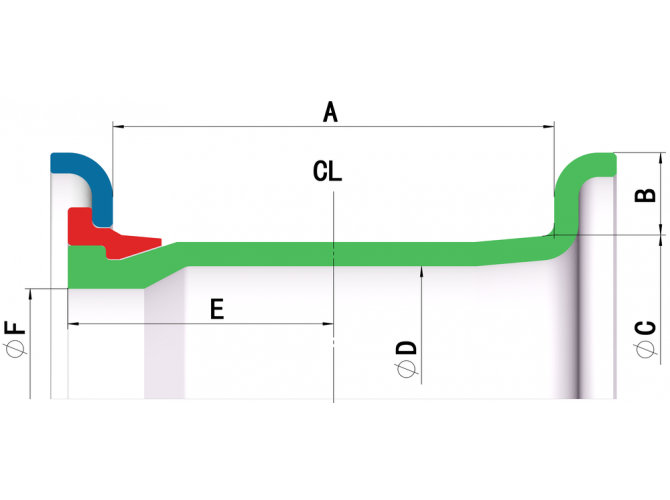

Геометрические размеры (мм) | |||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | ||
| 20–7.0 | 9.00–20, 9.00–20/7.00 массивная 10.00–20/7.00 массивная |
178.0 | 43 | 514.4 | 486.0 | 122.0 | 458.0 |
| 20–7.0 | 9.00–20 | 178.0 | 38 | 514.4 | 470.0 | 117.0 | 458.0 |
| 20–7.5 | 9.00–20,10.00–20, 10.00–20/7.50 массивная, 11.00–20/7.50 массивная |
190.0 | 43 | 514.4 | 486.0 | 123.0 | 458.0 |
| 20–7.5 | 9.00–20, 10.00–20 | 190.5 | 43 | 514.4 | 470.0 | 123.0 | 458.0 |
| 20–8.0 | 10.00–20, 11.00–20, 10.00–20 массивная, 11.00–20 массивная |
203.0 | 43 | 514.4 | 484.0 | 127.5 | 461.0 |
| 20–8.0 | 10.00–20, 11.00–20, 12.00–20 |
203.0 | 43 | 514.4 | 470.0 | 130.0 | 440.0 |
| 20–8.5 | 11.00–20, 12.00–20, 12.00–20/8.5 массивная |
216.0 | 43 | 514.4 | 484.0 | 142.0 | 458.0 |
| 20–8.5 | 11.00–20, 12.00–20 | 203.0 | 43 | 514.4 | 470.0 | 137.0 | 458.0 |
| 20–9.0 | 36×14–20 | 228.0 | 43 | 514.4 | 486.0 | 148.0 | 478.0 |
| 20–10.0/1.7 | 14.00–20, 14.00–24/1.00 массивная |
254.0 | 43 | 514.4 | 558.0 | 160.0 | 544.0 |
| 15.00Т–20 | 45×16–20 | 381.0 | 43 | 514.4 | 470.0 | 217.5 | 580.0 |
| 24–10.00W/2.0 | 14.00–24, 14.00–24/1.00 массивная |
254.0 | 51 | 614.4 | 562.0 | 186.0 | 536.8 |
| 24–8.5 | 12.00–24 | 216.0 | 43 | 614.4 | 566.0 | 143.0 | 544.0 |
| 24–10.00WA/2.0 | 14.00–24 | 254.0 | 51 | 614.4 | 562.0 | 173.0 | 544.0 |
| 24–8.5/1.7 | 12.00–24 | 216.0 | 43 | 614.4 | 566.0 | 135.0 | 544.0 |
| 24–10.0/1.7 | 14.00–24/10.00 массивная | 254.0 | 48 | 616.0 | 580.0 | 172.0 | 544.0 |
| 24–10.0 | 14.00–24 | 254.0 | 48 | 616.0 | 580.0 | 172.0 | 544.0 |
| 25–11.25/2.0 | 16.00–25/11.25 массивная | 286.0 | 51 | 635.0 | 576.0 | 193.0 | 546.0 |
