Посадочное кольцо Тип 3 (3 компонента)
20/1.0, 20/1.7, 20/1.7, 20/2.0, 20/2.0, 20/2.0, 20/2.0, 24/1.7, 24/1.7, 24/1.7, 24/1.7, 24/1.7, 24/1.7, 24/1.7, 24/1.7, 24/1.7, 24/2.0, 24/2.0, 25/1.5, 25/1.5, 25/1.7, 25/1.7, 25/2.0, 25/2.0, 25/2.0, 25/2.0, 25/2.5, 25/2.5, 25/2.5, 25/2.5, 25/3.0

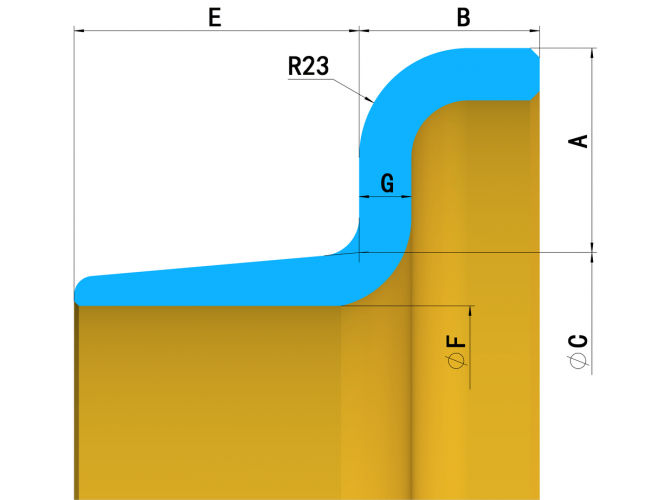

Характеристики
| ДИАМЕТР ОБОДА / ВЫСОТА ФЛАНЦА | Размеры, мм | ||||||
|---|---|---|---|---|---|---|---|
| A | B | Ø C | D | E | Ø F | G | |
| 20/1.0 | 48.0 | 44.0 | 514.4 | 28.0 | 40 | 502.0 | 10.0 |
| 20/1.7 | 43.0 | 34.0 | 514.4 | 23.0 | 60 | 492.0 | 13.5 |
| 20/1.7 | 43.0 | 32.0 | 514.4 | 23.0 | 60 | 492.0 | 10.0 |
| 20/2.0 | 48.0 | 34.0 | 514.4 | 28.0 | 40 | 502.0 | 10.0 |
| 20/2.0 | 51.0 | 34.0 | 514.4 | 25.5 | 60 | 492.0 | 11.0 |
| 20/2.0 | 51.0 | 36.0 | 514.4 | 25.5 | 60 | 492.0 | 12.0 |
| 20/2.0 | 51.0 | 34.0 | 514.4 | 25.5 | 60 | 492.0 | 11.0 |
| 24/1.7 | 43.0 | 36.0 | 614.4 | 25.5 | 60 | 592.0 | 12.0 |
| 24/1.7 | 43.0 | 36.0 | 614.4 | 25.5 | 60 | 596.0 | 8.0 |
| 24/1.7 | 43.0 | 36.0 | 614.4 | 25.5 | 60 | 592.0 | 8.0 |
| 24/1.7 | 43.0 | 36.0 | 614.4 | 25.5 | 68 | 592.0 | 12.0 |
| 24/1.7 | 43.0 | 36.0 | 614.4 | 25.5 | 60 | 592.0 | 13.5 |
| 24/1.7 | 43.0 | 36.0 | 616.0 | 25.5 | 50 | 589.5 | 13.5 |
| 24/1.7 | 43.0 | 36.0 | 614.4 | 25.5 | 50 | 592.0 | 13.5 |
| 24/1.7 | 43.0 | 36.0 | 614.4 | 25.5 | 55 | 592.0 | 13.5 |
| 24/1.7 | 43.0 | 32.0 | 616.0 | 25.5 | 60 | 592.0 | 12.0 |
| 24/2.0 | 51.0 | 36.0 | 614.4 | 25.5 | 60 | 592.0 | 12.0 |
| 24/2.0 | 51.0 | 40.0 | 614.4 | 25.5 | 60 | 592.0 | 15.0 |
| 25/1.5 | 38.0 | 32.0 | 635.0 | 25.5 | 65 | 612.5 | 8.0 |
| 25/1.5 | 38.0 | 32.0 | 635.0 | 25.5 | 65 | 612.5 | 10.0 |
| 25/1.7 | 43.0 | 32.0 | 635.0 | 23.0 | 65 | 609.5 | 12.0 |
| 25/2.0 | 51.0 | 36.0 | 635.0 | 32.0 | 65 | 612.5 | 8.0 |
| 25/2.0 | 51.0 | 38.0 | 635.0 | 32.0 | 65 | 609.5 | 9.0 |
| 25/2.0 | 51.0 | 38.0 | 635.0 | 32.0 | 65 | 609.5 | 11.0 |
| 25/2.0 | 51.0 | 38.0 | 635.0 | 32.0 | 50 | 609.5 | 11.0 |
| 25/2.0 | 51.0 | 36.0 | 635.0 | 32.0 | 65 | 609.5 | 12.0 |
| 25/2.5 | 63.5 | 45.0 | 635.0 | 38.0 | 65 | 609.5 | 11.0 |
| 25/2.5 | 63.5 | 45.0 | 635.0 | 38.0 | 65 | 609.5 | 11.0 |
| 25/2.5 | 63.5 | 45.0 | 635.0 | 38.0 | 65 | 609.5 | 11.0 |
| 25/2.5 | 63.5 | 45.0 | 635.0 | 38.0 | 65 | 612.5 | 12.0 |
| 25/2.5 | 63.5 | 45.0 | 635.0 | 38.0 | 106 | 602.0 | 16.0 |
| 25/2.5 | 63.5 | 45.5 | 635.0 | 38.0 | 65 | 609.5 | 11.0 |
| 25/3.0 | 76.0 | 58.0 | 635.0 | 44.5 | 80 | 609.5 | 14.0 |
