Посадочное кольцо Тип 1 (3 компонента)
24/1.7, 24/1.7, 24/2.0, 25/1.5, 25/1.5, 25/1.7, 25/1.7, 25/2.0, 25/2.0

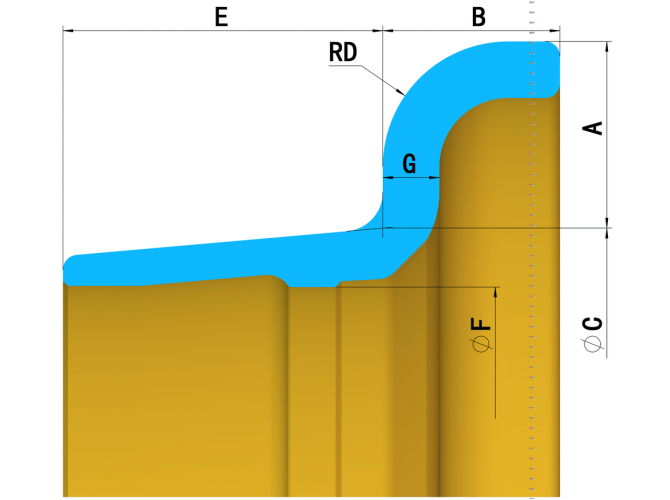

Характеристики
| ДИАМЕТР ОБОДА / ВЫСОТА ФЛАНЦА | Размеры, мм | ||||||
|---|---|---|---|---|---|---|---|
| A | B | Ø C | D | E | Ø F | G | |
| 24/1.7 | 43 | 32 | 614.4 | 25.5 | 65 | 590.2 | 11.5 |
| 24/1.7 | 43 | 36 | 614.4 | 25.5 | 50 | 590.2 | 13.0 |
| 24/2.0 | 51 | 36 | 614.4 | 25.5 | 50 | 590.2 | 13.0 |
| 25/1.5 | 38 | 32 | 635.0 | 25.5 | 70 | 611.0 | 10.0 |
| 25/1.5 | 38 | 36 | 635.0 | 25.5 | 70 | 611.0 | 12.0 |
| 25/1.7 | 43 | 32 | 635.0 | 23.0 | 70 | 611.0 | 9.5 |
| 25/1.7 | 43 | 32 | 635.0 | 23.0 | 70 | 611.0 | 11.0 |
| 25/1.7 | 43 | 32 | 635.0 | 23.0 | 65 | 611.0 | 12.0 |
| 25/2.0 | 51 | 36 | 635.0 | 32.0 | 70 | 611.0 | 11.0 |
| 25/2.0 | 51 | 36 | 635.0 | 32.0 | 70 | 611.0 | 12.0 |
