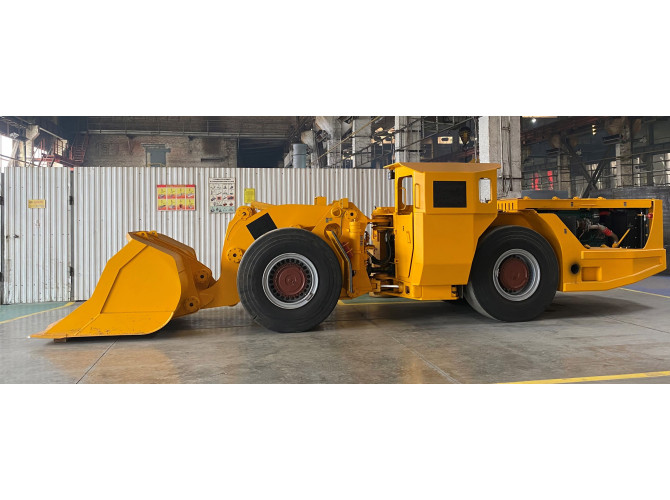

Погрузочно-доставочные машины
Подземная техника
25–13.00/2.5, 25–14.00/1.5, 25–14.00/2.0, 29–25.00/3.5, 29–27.00/3.5, 33–28.00/3.5, 33–28.00/3.5
Подземная техника
Характеристики
| Размер обода | Рекомендуемый размер шин |

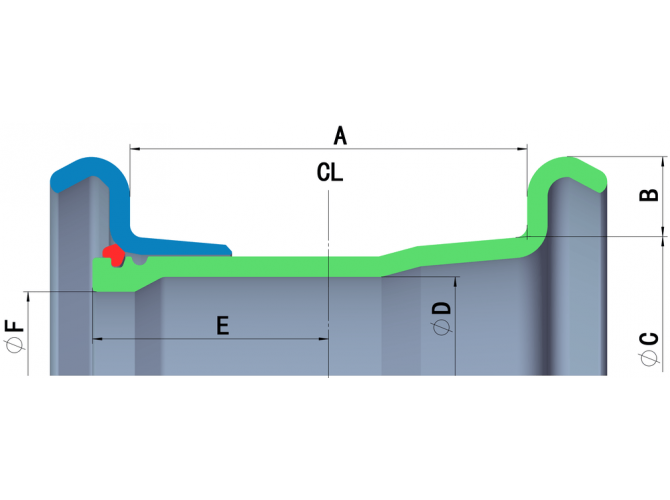

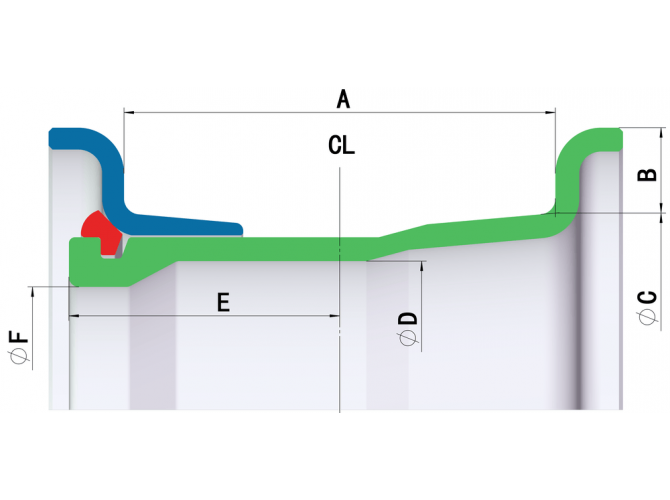

Геометрические размеры (мм) | |||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | ||
| 25–13.00/2.5 | 18.00–25/R25 | 330.0 | 63.5 | 635.0 | 576.0 | 212.5 | 546 |
| 25–14.00/1.5 | 17.5–25/R25 | 355.6 | 38.0 | 635.0 | 587.6 | 199.8 | 568 |
| 25–14.00/2.0 | 17.5–25/R25 | 355.6 | 51.0 | 635.0 | 576.0 | 228.8 | 546 |
| 29–25.00/3.5 | 29.5–29/R29 | 635.0 | 89.0 | 736.6 | 677.0 | 368.5 | 639 |
| 29–27.00/3.5 | 33.25–29/R29 | 660.4 | 89.0 | 736.6 | 677.0 | 394.0 | 639 |
| 33–28.00/3.5 | 35/65R33 | 711.2 | 89.0 | 838.2 | 779.2 | 414.2 | 753 |
| 33–28.00/3.5 | 35/65R33 | 711.2 | 89.0 | 838.2 | 775.0 | 409.5 | 715 |
