Грейдеры
Дорожная техника
24–10.00VA, 25–12.00/1.3, 25–14.00/1.5, 25–17.00/1.7, 25–17.00/2.0, 25–19.50/2.5, 25–19.50/2.5, 29–25.00/3.5
Дорожная техника
Характеристики
| Размер обода | Рекомендуемый размер шин |

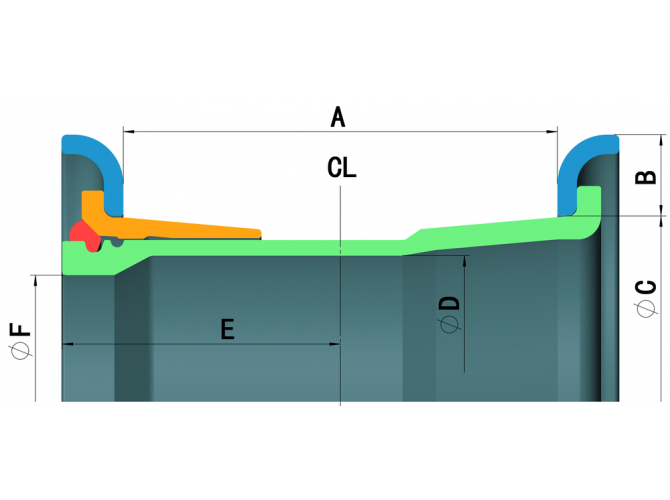

Геометрические размеры (мм) | |||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | ||
| 24–10.00VA | 14.00–24/R24 | 254.0 | 43.0 | 614.4 | 573.0 | 148.6 | 547.4 |
| 25–12.00/1.3 | 15.5–25/R25 | 305.0 | 33.0 | 635.0 | 592.0 | 174.5 | 568.0 |
| 25–14.00/1.5 | 17.5–25/R25 | 355.6 | 38.0 | 635.0 | 592.0 | 199.3 | 568.0 |
| 25–17.00/1.7 | 20.5–25/R25 | 432.0 | 43.0 | 635.0 | 587.6 | 238.5 | 564.0 |
| 25–17.00/2.0 | 20.5–25/R25 | 432.0 | 51.0 | 635.0 | 587.6 | 238.5 | 564.0 |
| 25–19.50/2.5 | 23.5–25/R25 | 495.0 | 63.5 | 635.0 | 576.0 | 276.0 | 546.0 |
| 25–19.50/2.5 | 23.5–25/R25 | 495.0 | 63.5 | 635.0 | 576.0 | 298.5 | 546.0 |
| 29–25.00/3.5 | 29.5–29/R29 | 635.0 | 89.0 | 736.6 | 677.0 | 368.5 | 639.0 |
