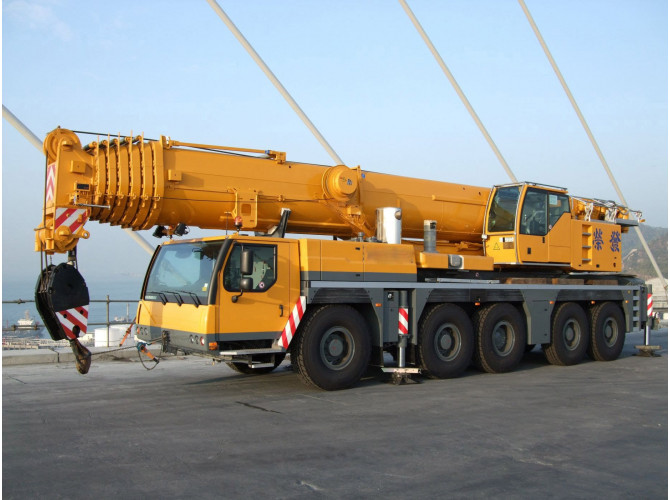

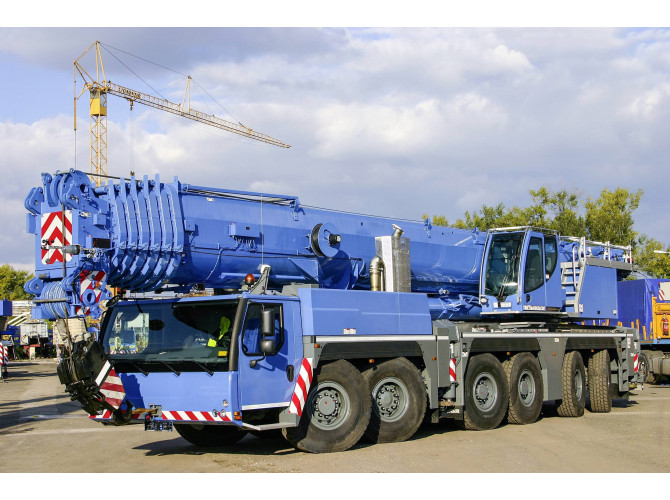

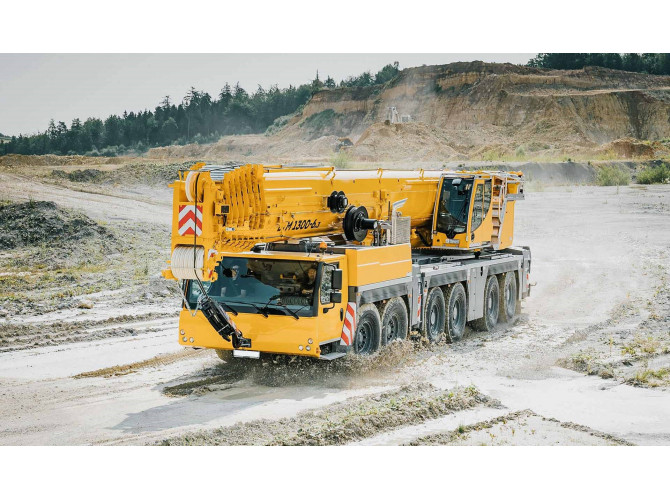

Диски для Кранов
Портовая и складская техника
25–9.50/1.7CR, 25–10.00/1.5, 25–11.25/2.0, 25–14.00/1.5, 25–17.00/1.7, 25–17.00/2.0, 25–19.50/2.5, 25–22.00/3.0, 25–25.00/3.5, 29–25.00/3.5, 29–27.00/3.5, 21–10.50/1.6, 24–10.00W/2.0, 49–19.50/4.0
Портовая и складская техника
Характеристики
| Размер обода | Рекомендуемый размер шин |

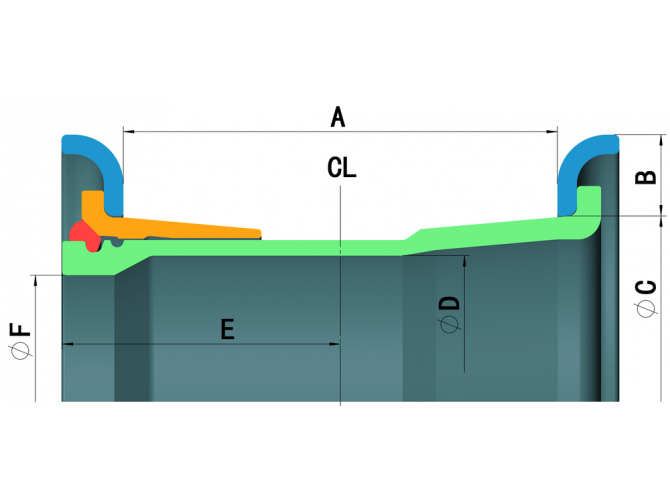

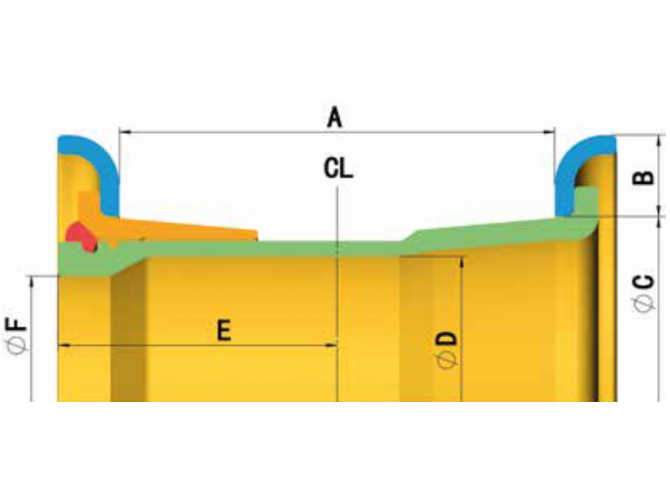

Геометрические размеры (мм) | |||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | ||
| 25–9.50/1.7CR | 385/95R25 | 241.3 | 43.0 | 635 | 587.6 | 143.0 | 564 |
| 25–10.00/1.5 | 14.00–25/R25 | 254.0 | 38.0 | 635 | 587.6 | 149.5 | 564 |
| 25–10.00/1.5 | 385/95R25 | 254.0 | 38.0 | 635 | 587.6 | 149.5 | 564 |
| 25–11.00/1.7CR | 445/95R25 | 279.4 | 43.0 | 635 | 587.6 | 162.2 | 564 |
| 25–11.25/2.0 | 16.00–25/R25 | 286.0 | 51.0 | 635 | 587.6 | 165.5 | 564 |
| 25–11.25/2.0 | 445/95R25 | 286.0 | 51.0 | 635 | 587.6 | 165.5 | 564 |
| 25–13.00/2.5 | 18.00–25/R25 | 330.0 | 63.5 | 635 | 578.0 | 195.0 | 564 |
| 25–14.00/1.5 | 17.5–25/R25 | 355.6 | 38.0 | 635 | 587.6 | 165.5 | 564 |
| 25–14.00/1.7CR | 445/80R25 | 355.6 | 38.0 | 635 | 587.6 | 200.3 | 564 |
| 25–14.00/1.5 | 445/80R25 | 355.6 | 38.0 | 635 | 587.6 | 200.3 | 564 |
| 25–17.00/1.7 | 20.5–25/R25 | 432.0 | 43.0 | 635 | 587.6 | 238.5 | 564 |
| 25–17.00/1.7CR | 525/80R25 | 432.0 | 43.0 | 635 | 587.6 | 238.5 | 564 |
| 25–17.00/2.0 | 525/80R25 | 432.0 | 51.0 | 635 | 587.6 | 238.5 | 564 |
| 25–9.50/1.7CR | 385/95R25 | 241.0 | 43.0 | 635.0 | 587.6 | 143.0 | 564 |
| 25–10.00/1.5 | 14.00–25/R25 | 254.0 | 38.0 | 635.0 | 587.6 | 149.5 | 564 |
| 25–10.00/1.5 | 385/95R25 | 254.0 | 38.0 | 635.0 | 587.6 | 149.5 | 564 |
| 25–11.25/2.0 | 16.00–25/R25 | 286.0 | 51.0 | 635.0 | 587.6 | 165.5 | 564 |
| 25–11.25/2.0 | 445/95R25 | 286.0 | 51.0 | 635.0 | 587.6 | 165.5 | 564 |
| 25–10.00/1.5 | 14.00–25/R25 | 254.0 | 43.0 | 635.0 | 587.6 | 149.5 | 564 |
| 25–10.00/1.5 | 385/95R25 | 254.0 | 38.0 | 635.0 | 587.6 | 149.5 | 564 |
| 25–11.25/2.0 | 16.00–25/R25 | 286.0 | 38.0 | 635.0 | 587.6 | 165.5 | 564 |
| 25–11.25/2.0 | 445/95R25 | 286.0 | 43.0 | 635.0 | 587.6 | 165.5 | 564 |
| 25–14.00/1.5 | 17.5–25/R25 | 355.6 | 51.0 | 635.0 | 587.6 | 165.5 | 564 |
| 25–17.00/1.7 | 20.5–25/R25 | 432.0 | 51.0 | 635.0 | 587.6 | 238.5 | 564 |
| 25–17.00/2.0 | 20.5–25/R25 | 432.0 | 63.5 | 635.0 | 587.6 | 238.5 | 564 |
| 25–19.50/2.5 | 23.5–25/R25 | 495.0 | 38.0 | 635.0 | 576.0 | 276.0 | 546 |
| 25–22.00/3.0 | 26.5–25/R25 | 558.8 | 38.0 | 635.0 | 576.0 | 330.4 | 546 |
| 25–25.00/3.5 | 29.5–25/R25 | 635.0 | 38.0 | 635.0 | 576.0 | 368.5 | 546 |
| 29–25.00/3.5 | 29.5–29/R29 | 635.0 | 43.0 | 736.6 | 673.0 | 368.5 | 639 |
| 29–27.00/3.5 | 875/65R29 | 686.0 | 43.0 | 736.6 | 673.0 | 394.0 | 639 |
| Размер обода | Рекомендуемый размер шин |

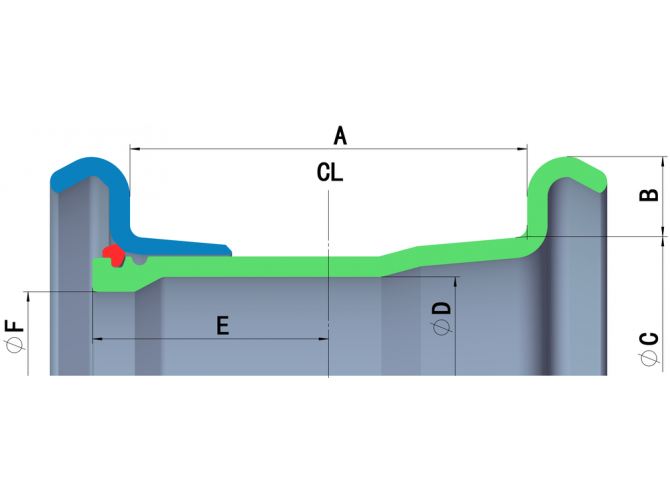

Геометрические размеры (мм) | |||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | ||
| 21–10.50/1.6 | H44.5X16.5–21 | 266.7 | 39.6 | 535.53 | 474 | 191.75 | 426 |
| 24–10.00W/2.0 | 14.00–24/R24 | 254.0 | 51.0 | 609.6 | 564 | 172.5 | 530 |
| 25–22.00/3.0 | 26.5–25/R25 | 558.8 | 76.0 | 635.0 | 576 | 308.0 | 546 |
| 49–19.50/4.0 | 27.00–49/R49 | 495.3 | 101.6 | 1244.6 | 1184 | 308.5 | 1120 |
